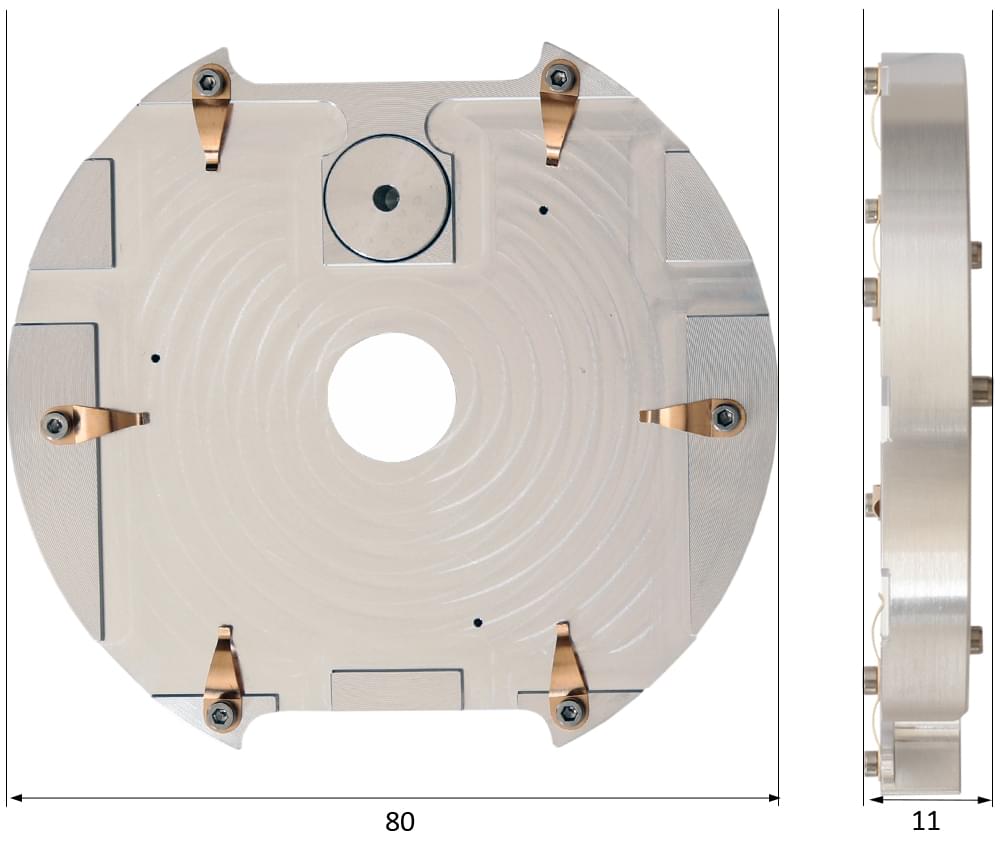

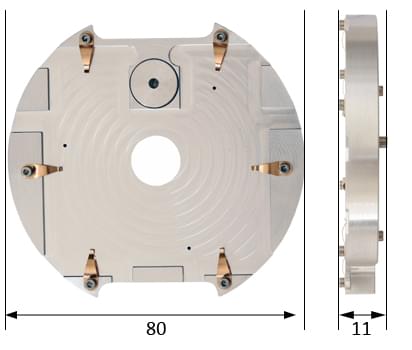

Safematic CCU-010 coater family: Slides Stage ST-010. Safematic CCU-010 coater family: Slides Stage ST-010. Safematic CCU-010 coater family: Slides Stage ST-010. With specimen slide. Safematic CCU-010 coater family: Slides Stage ST-010. Safematic CCU-010 coater family: Slides Stage ST-010. With small glasses. Safematic CCU-010 coater family: Slides Stage ST-010. With a big glass. Safematic CCU-010 coater family: Slides Stage ST-010. Dimensions.

Specimen Stage for Microscopy Slides

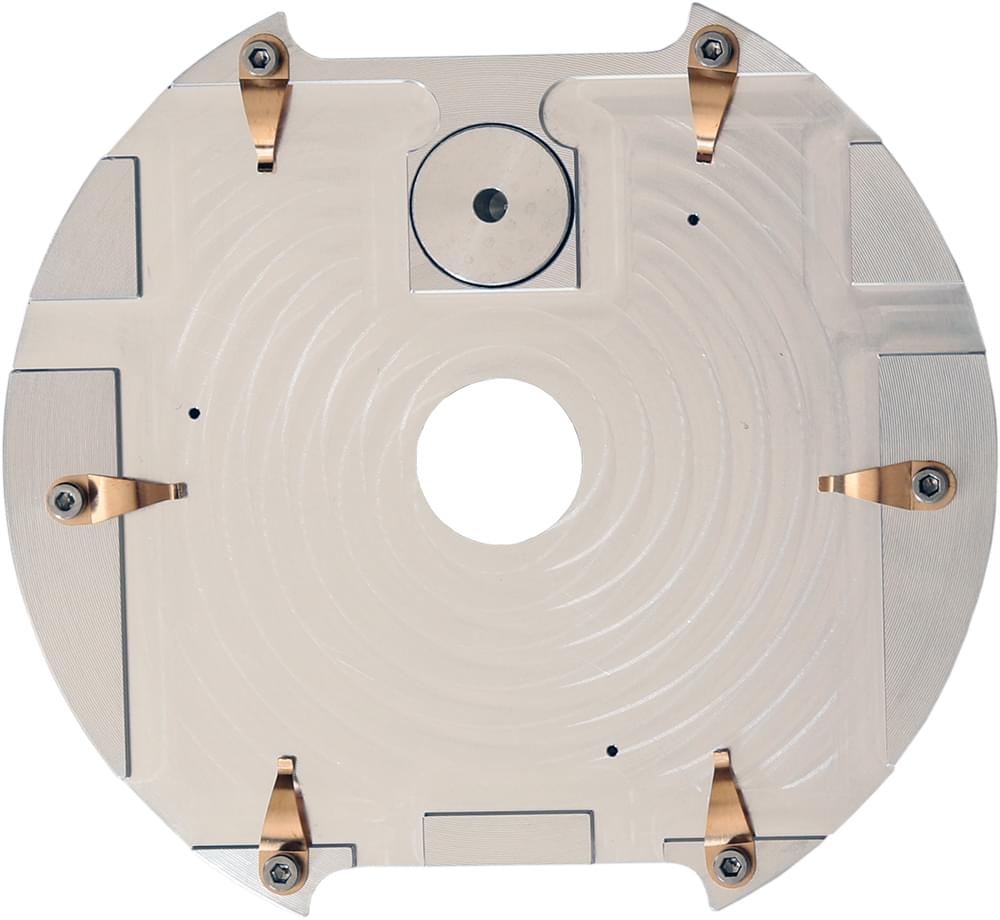

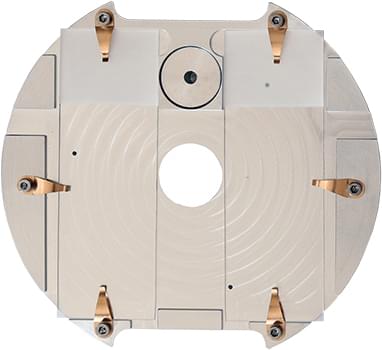

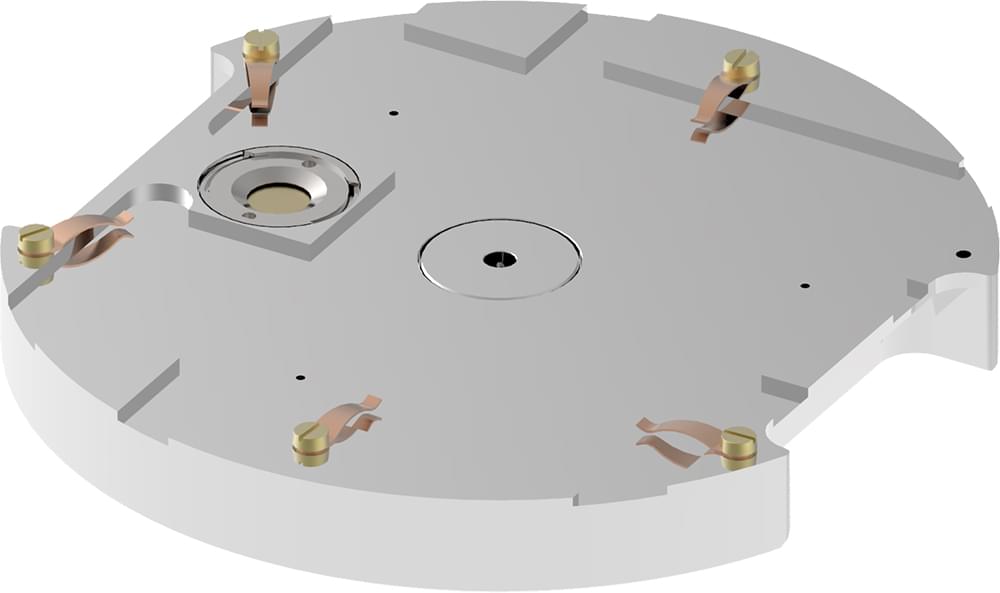

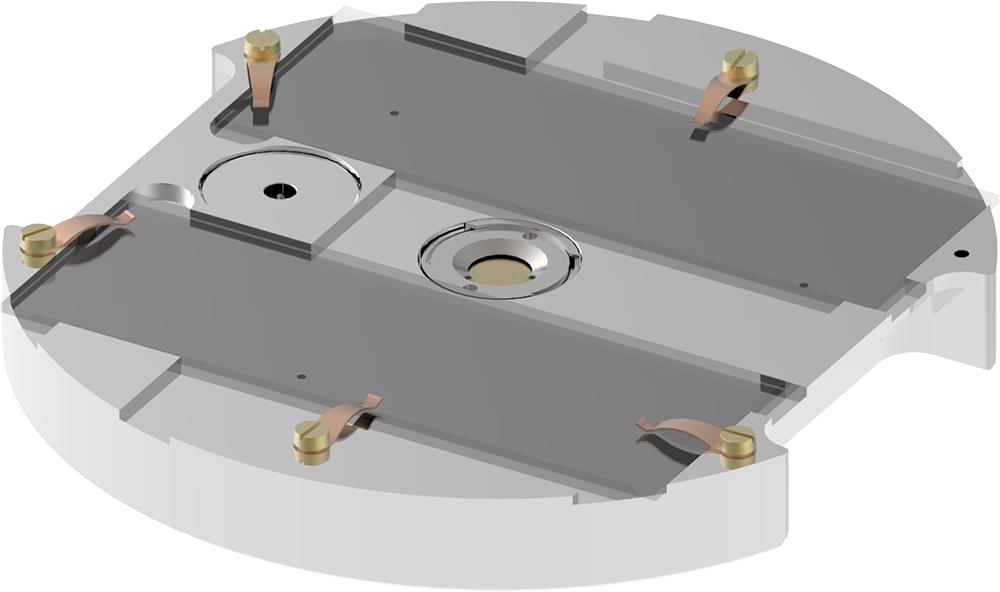

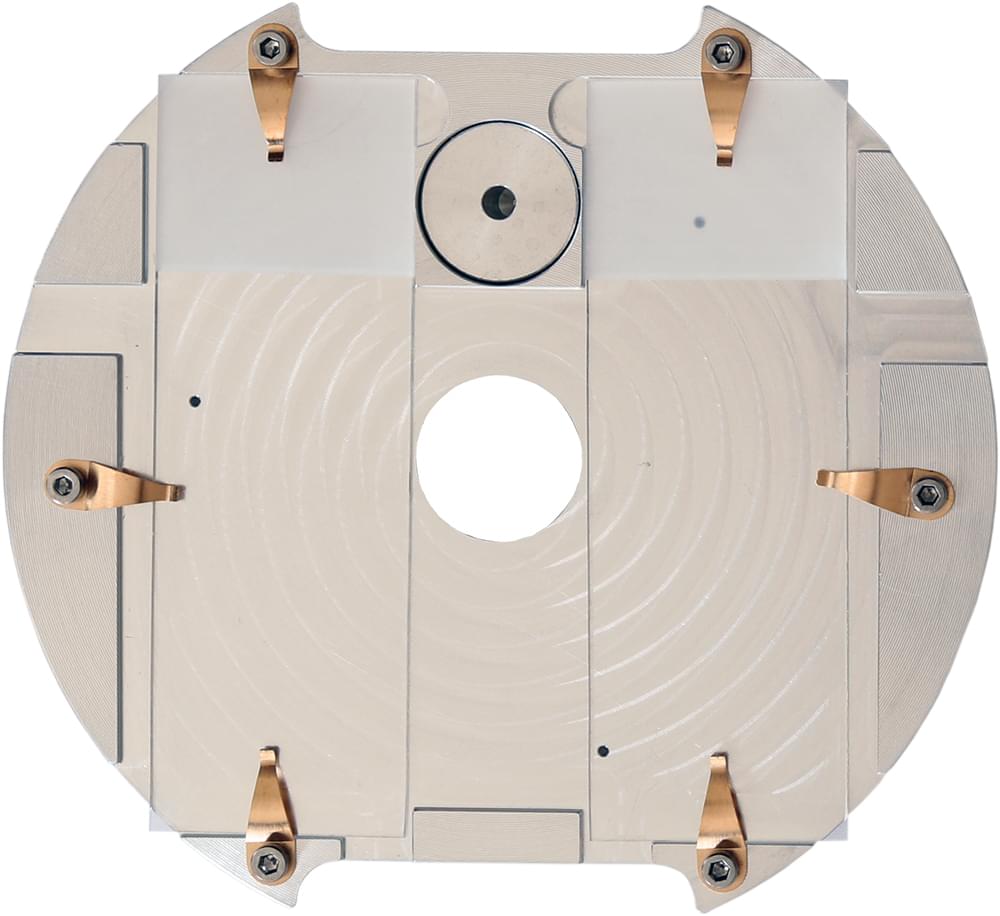

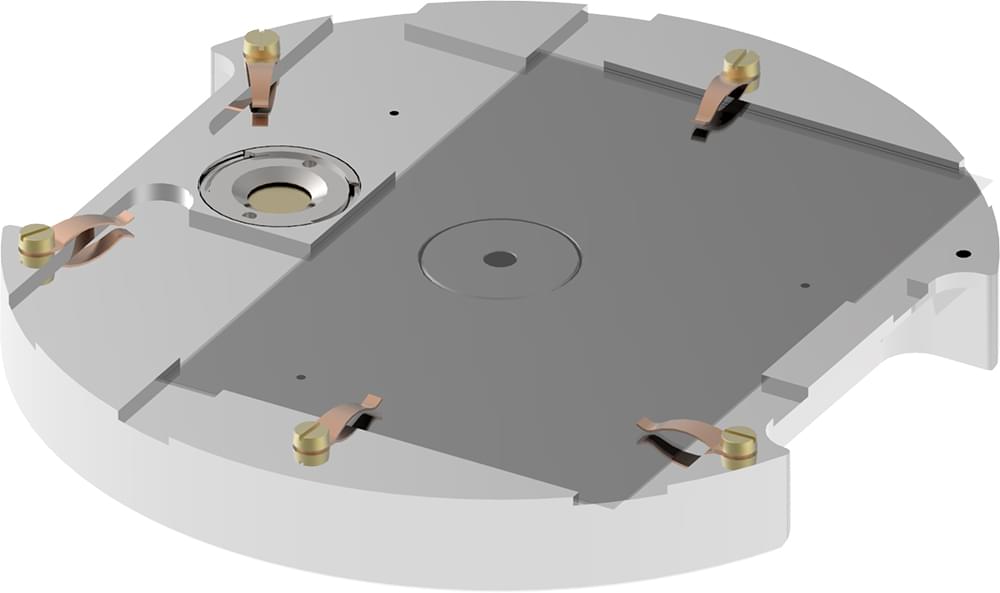

The slides stage ST-010 carries two 26 x 76 mm (25 x 75 mm respectively) microscope slides or one 52 x 76mm (50 x 75 mm respectively) slide. Due to the dual-position film thickness monitor, the quartz sensor is operational for both arrangements. For fixation six S-clips are mounted with a small M2x3 screw which allows the S-clip to rotate. The S-clips are made from conductive spring grade copper alloy. Samples are clamped securely without the need for conductive adhesives or conductive pastes. Sample changing is quick, easy and clean. Contamination issues due to adhesives or glues are eliminated.

Six mounting clips M2 are included.

The S-Clips are also separately available (Art. No. 1000119) to enable customers to make their own custom made sample clip holders.

ST-010 Slides Stage

Art. No. 1000088
Used with CCU-010 LV or CCU-010 HV.
