PS-060 Planetary Gear Table

The PS-006 is a planetary gear table with speed regulation. A film thickness monitor is fitted as standard which will precisely monitor and control film thickness of carbon and metal films.

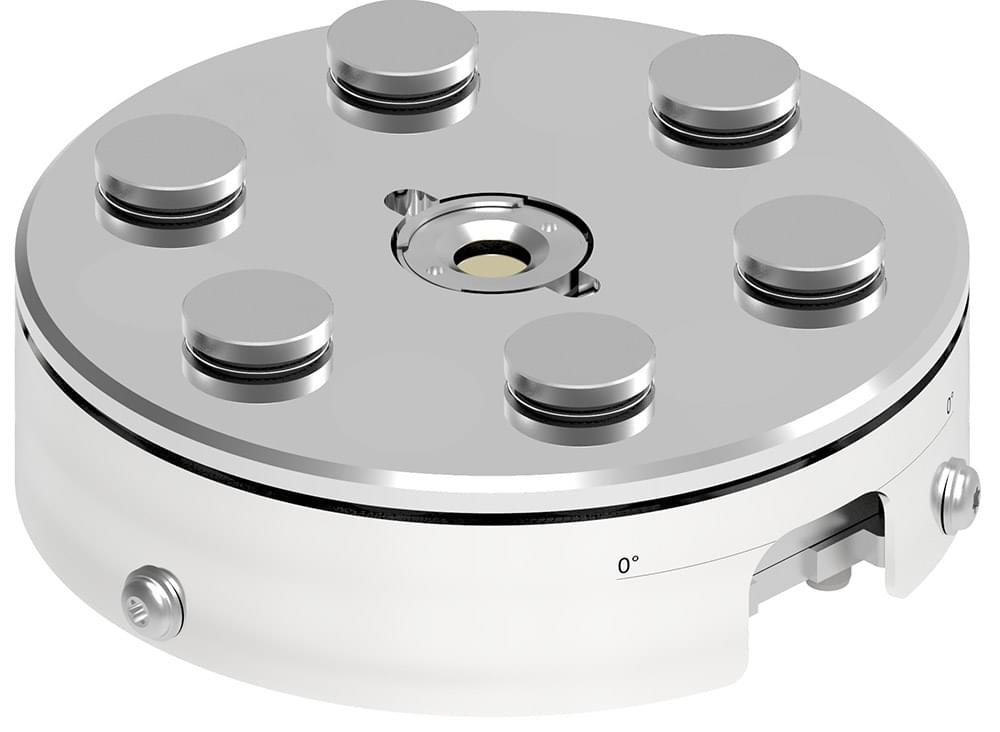

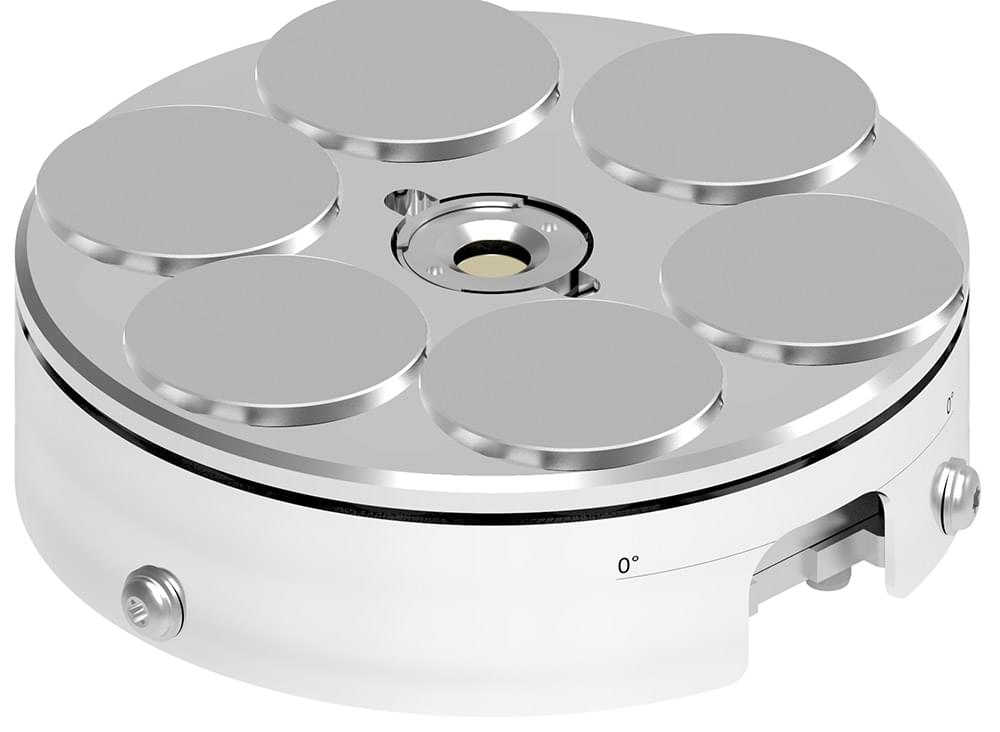

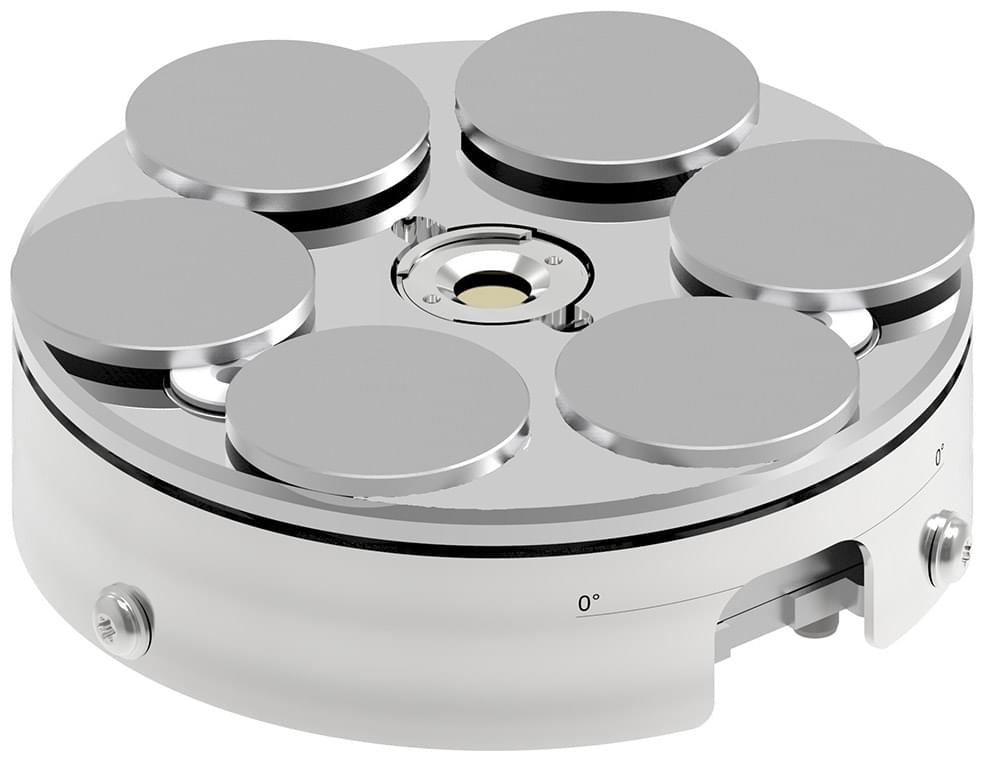

Safematic CCU-010 coater family: Planetary stage / Planetary gear table PS-006. Safematic CCU-010 coater family: Planetary stage / Planetary gear table PS-006. 13 stubs. Safematic CCU-010 coater family: Planetary stage / Planetary gear table PS-006. 13 stubs. Safematic CCU-010 coater family: Planetary stage / Planetary gear table PS-006. 25 stubs. Safematic CCU-010 coater family: Planetary stage / Planetary gear table PS-006. Safematic CCU-010 coater family: Planetary stage / Planetary gear table PS-006. Dimensions.

Planetary Gear Table with Speed Regulation

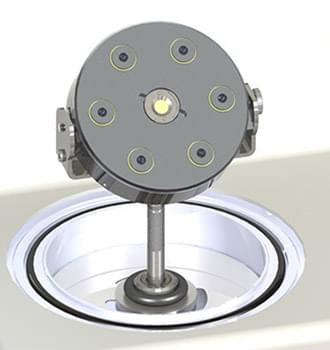

The optional planetary gear table is attached to the existing stage of the basic unit. A film thickness monitor is fitted as standard which will precisely monitor and control film thickness of carbon and metal films. An automatic table recognition and speed control (0 ... 100%) function is integrated into the software of the basic unit. The table can hold a total of 6 sample stubs. The basic table turns clockwise, the 6 sample stub holders turn anticlockwise. The optional rotary table is attached to the existing stage of the basic unit. An automatic table recognition and speed control (0 ... 100 %) is already integrated into the software of the basic unit. The table can hold a total of 20 sample stubs. Simultaneous placement of 5 large stubs with a diameter of 25.4 mm or 10 small stubs with a diameter of 12.7 mm is possible.

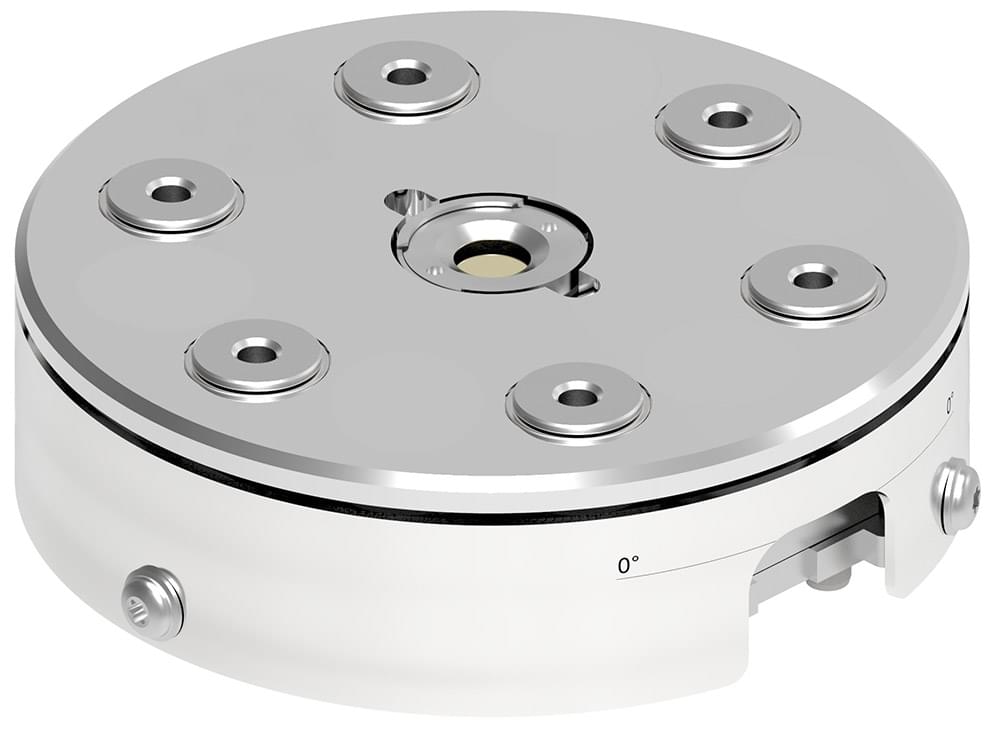

PS-006 Planetary Gear Table

Art. No. 1000130
Used with CCU-010 LV or CCU-010 HV.
Technical Data

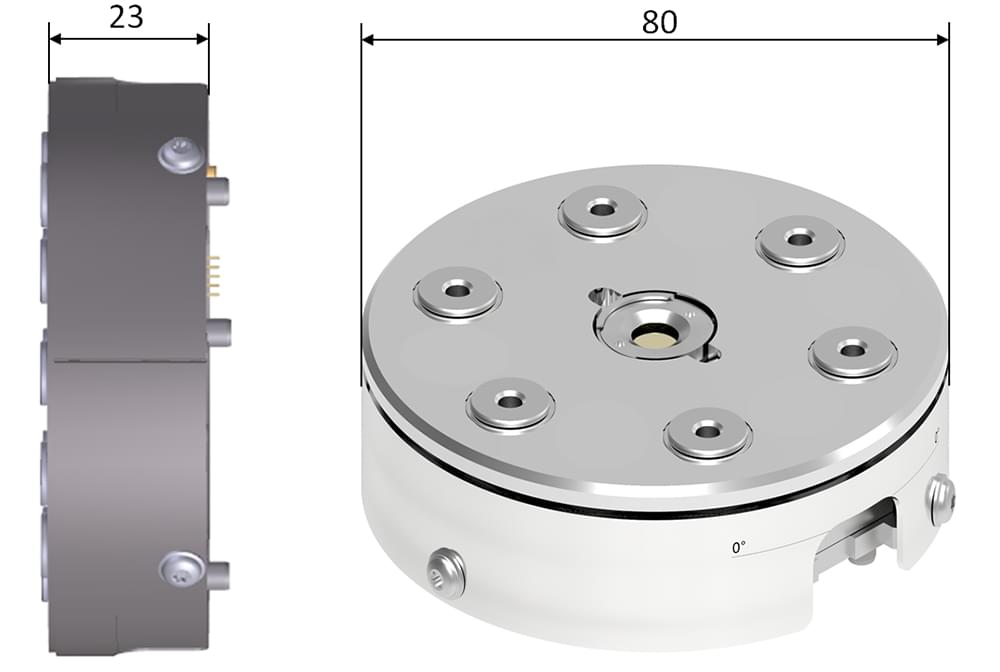

Dimensions (D x H) 80 x 23 mm
Weight 0.2 kg
Number of sample stub holders 6
Rotation direction, table Clockwise
Speed, table 2.15 rpm ... 20 rpm
Rotation direction, sample stub holders Anticlockwise
Speed, sample stub holders 7 rpm ... 65 rpm
Temperature range 10 ... 40 °C
Downloads
1000089 – Rotary Support for PS-006 Planetary Gear Table.
CCU-010 Compact Coating Unit.
