Standard Stage

The standard stage is included in base unit and is connected to the tilt and height adjustable table of the CCU-010.

Safematic CCU-010 coater family: Standard stage a specimen stage for microscopy slides. At the bottom. Safematic CCU-010 coater family: Standard stage a specimen stage for microscopy slides. On the top. Safematic CCU-010 coater family: Standard stage a specimen stage for microscopy slides. Sensor inside. Safematic CCU-010 coater family: Standard stage a specimen stage for microscopy slides. Sensor outside. Safematic CCU-010 coater family: Standard stage with stubs 25. Safematic CCU-010 coater family: Standard stage ST-010 with stubs 13. Safematic CCU-010 coater family: Standard stage a specimen stage for microscopy slides. Dimensions.

Standard Stage

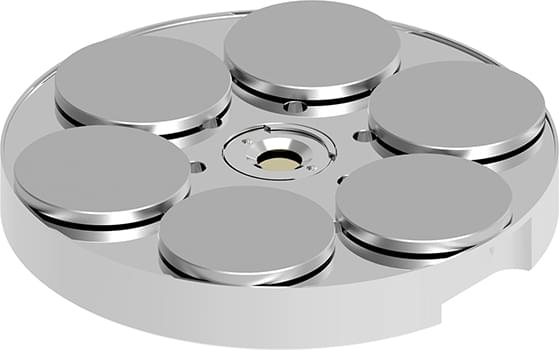

The standard stage is connected to the tilt and height adjustable table of the CCU-010 of the basic unit. It has a diameter of 80 mm and holds six large(Ø 25.4 mm) or 18 small (Ø 12.7 mm) SEM pin stubs.

The table contains two slots for the quartz sensor (center position for normal use and edge position for larger samples).

Standard Stage

Art. No. 400020
Used with CCU-010 LV or CCU-010 HV.
